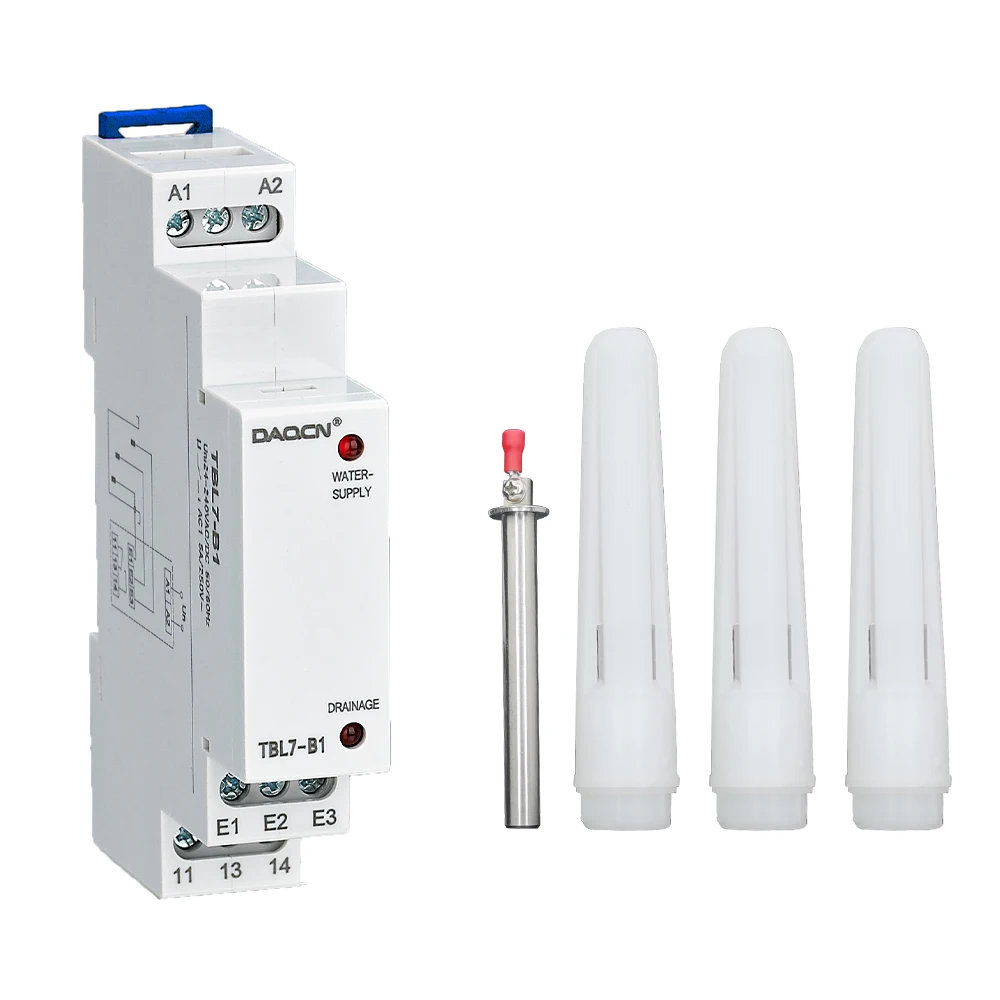

DIN Rail Mounting Three Electrode Automatic Water Level Liquid Controller TBL7-B1

  • Function: Liquid Level Controller
  • Voltage Range: AC/DC24V-240V, 50~60Hz
  • Bueden: max. 2VA; Time Range: -15%;+10%
  • Interelectrode Voltage: max. AC10V; Interelectrode Current: AC<0.1mA
  • Relay status is indicated by Red LED: Water-supply and Drainage.
  • Size: 94 x 18 x 64 mm / 3.7 » x 0.70 » x 2.52 » (LxWxH)
  • Weight: 70g;
  • Package Includes: 1 x Liquid Timer Control Relay, Instruction



TECHNICAL PARAMETERS

  • Supply Terminals：A1-A2
  • Voltage Range: AC/DC24V-240V,50-60Hz
  • Burden: max. 2VA
  • Time Range: -15%;+10%
  • Interelectrode Voltage: max. AC10V
  • Interelectrode Current: AC<0.1mA
  • Response Time: max. 400ms
  • Cable length: max. 100m
  • Output: 1 x SPDT;
  • Current Rating: 1x5A(AC1); 250VAC/24VDC
  • Min. breaking capacity DC: 500mW
  • Mechanical Life: 1×10,000,000 cycles
  • Electrical Life(AC1): 1×100,000 cycles
  • Reset time: max.200ms
  • Operating Temperature: -20°C ~ 55°C / -4°F ~ 131°F
  • Storage Temperature: -35°C ~ 75°C / -22°F ~ 167°F
  • Protection Degree: IP20
  • Operation Degree: Any
  • Pollution degree：2
  • Installation: DIN rail mounting or Screw mounting
  • Max.cable (size): Solid wire max.1×2.5 or 2×1.5/with sleeve max. 1×2.5(AWG12)

APPLICATION

The Electronic Liquid Level Controller is used for Controlling of ordinary purified water or sewage water, such as water tank, water pond, water pool ,Etc.



12 000 CFA

Rupture de stock

0
Electronic equipment
UGS : WEMOS2311 Catégorie :
Description
  • Function: Liquid Level Controller
  • Voltage Range: AC/DC24V-240V, 50~60Hz
  • Bueden: max. 2VA; Time Range: -15%;+10%
  • Interelectrode Voltage: max. AC10V; Interelectrode Current: AC<0.1mA
  • Relay status is indicated by Red LED: Water-supply and Drainage.
  • Size: 94 x 18 x 64 mm / 3.7 » x 0.70 » x 2.52 » (LxWxH)
  • Weight: 70g;
  • Package Includes: 1 x Liquid Timer Control Relay, Instruction



TECHNICAL PARAMETERS

  • Supply Terminals：A1-A2
  • Voltage Range: AC/DC24V-240V,50-60Hz
  • Burden: max. 2VA
  • Time Range: -15%;+10%
  • Interelectrode Voltage: max. AC10V
  • Interelectrode Current: AC<0.1mA
  • Response Time: max. 400ms
  • Cable length: max. 100m
  • Output: 1 x SPDT;
  • Current Rating: 1x5A(AC1); 250VAC/24VDC
  • Min. breaking capacity DC: 500mW
  • Mechanical Life: 1×10,000,000 cycles
  • Electrical Life(AC1): 1×100,000 cycles
  • Reset time: max.200ms
  • Operating Temperature: -20°C ~ 55°C / -4°F ~ 131°F
  • Storage Temperature: -35°C ~ 75°C / -22°F ~ 167°F
  • Protection Degree: IP20
  • Operation Degree: Any
  • Pollution degree：2
  • Installation: DIN rail mounting or Screw mounting
  • Max.cable (size): Solid wire max.1×2.5 or 2×1.5/with sleeve max. 1×2.5(AWG12)

APPLICATION

The Electronic Liquid Level Controller is used for Controlling of ordinary purified water or sewage water, such as water tank, water pond, water pool ,Etc.
