Technical Specifications

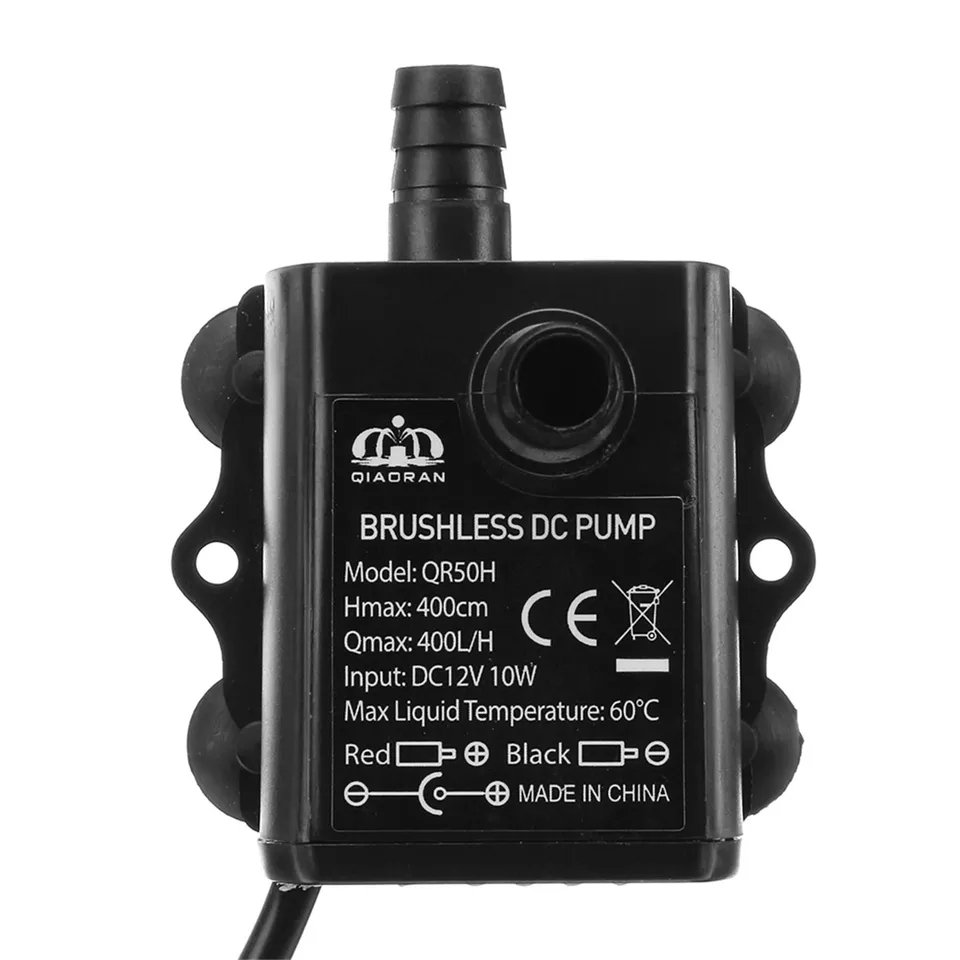

• Model: QR50H

• Rated Voltage: DC 12V

• Max Power: 10W

• Max Current: 830mA

• Max Flow Rate: 400 L/H

• Max Static Lift (Head): 400cm / 13.12ft

• Noise Level: Less than 37dB

• Waterproof Class: IP68 (Fully submersible)

• Max Liquid Temperature: 60°C

• Cable Length: 150cm / 59in

• Inlet/Outlet Diameter: Outer: 8.5mm / Inner: 6mm

• Product Size: 59.5 x 49 x 42mm

• Material: PC + ABS (Pump shell)

Key Features

• Brushless Motor: Uses a permanent magnetic rotor, maintenance-free and long-lasting.

• Amphibious Design: Can be used both inside the water (submersible) or outside of it.

• Safety Protections: Includes « Lack of Water Protection » (auto-shutoff if dry).

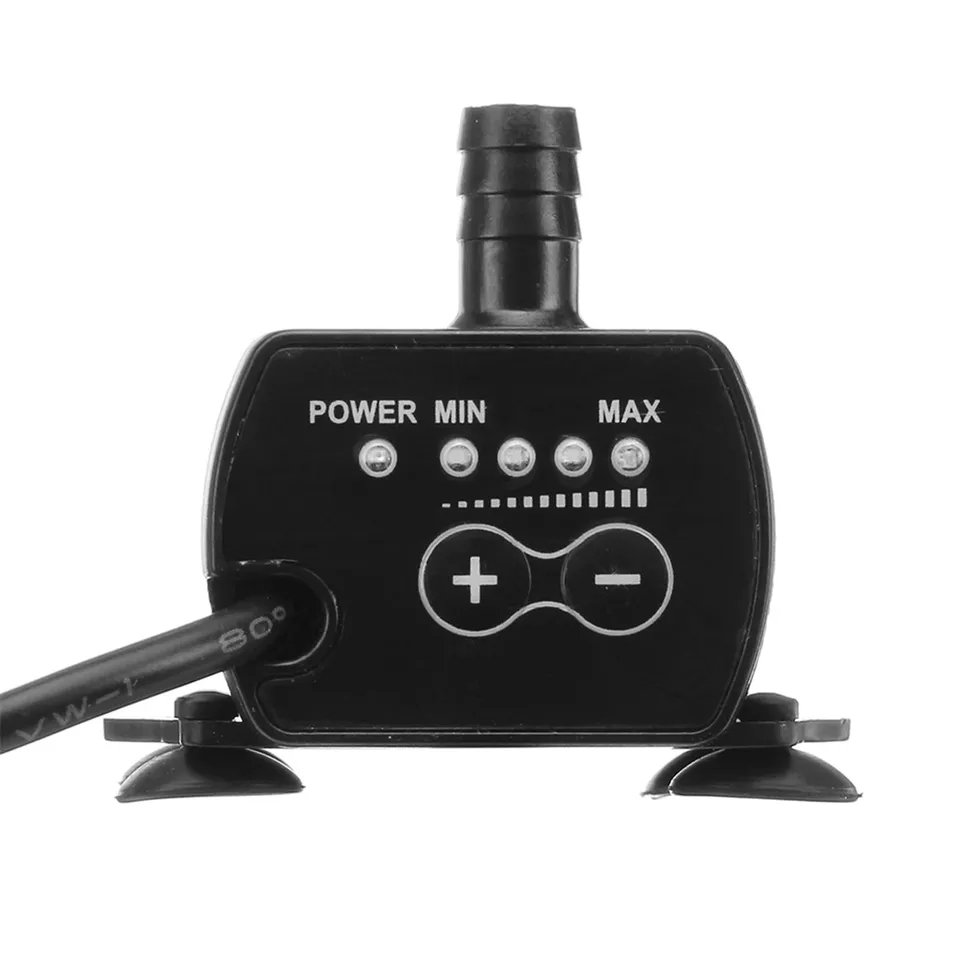

• Adjustable Flow: 4-level flow adjustment with LED indicators and memory function.

• Quiet Operation: Features 4 rubber suction cups on the bottom to reduce vibration and noise.

• Durable Build: Pure copper enameled wire coil and circuit board sealed by epoxy resin for lower temperature rise.

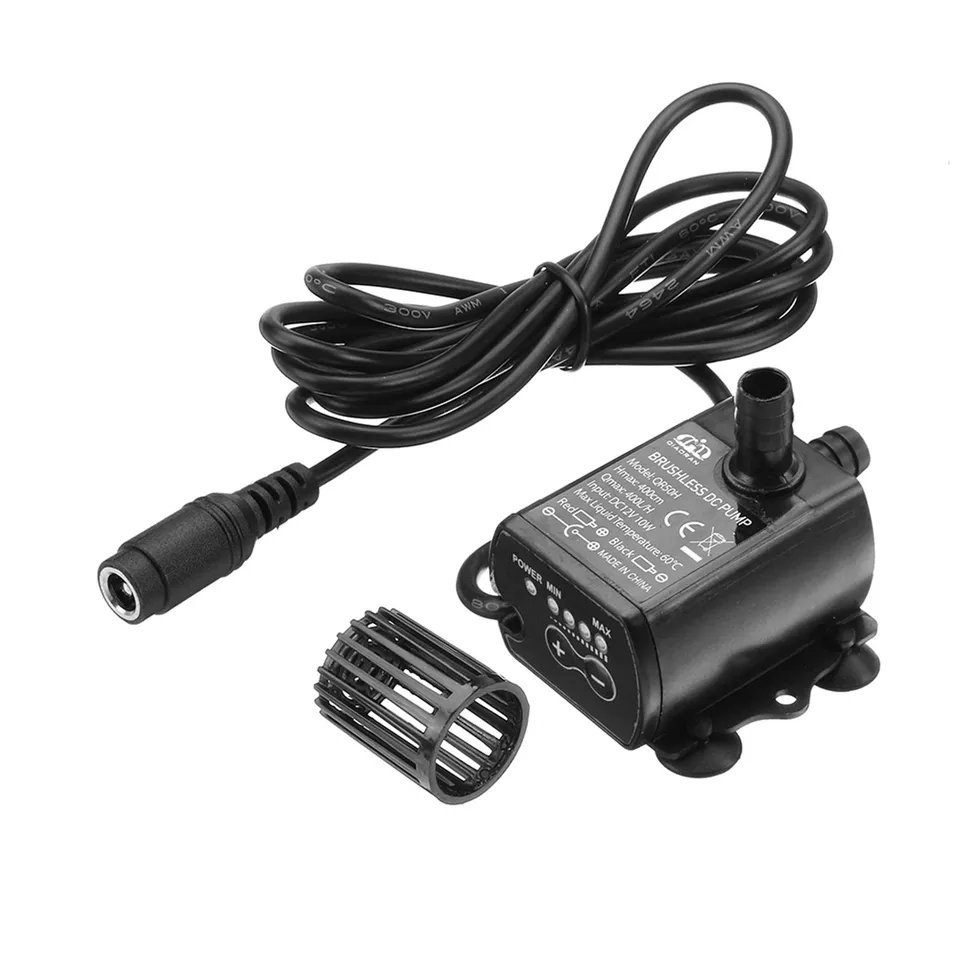

• Detachable Design: Can be easily disassembled for cleaning (filter included to prevent blocking).

Applications

• Aquariums and fish tanks

• Garden fountains and solar water systems

• Car cooling and computer water cooling systems

• Water circulation systems
